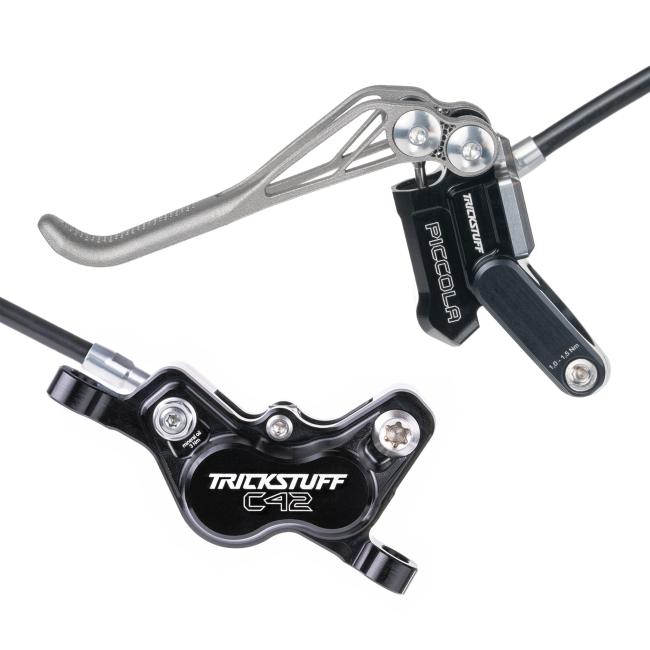

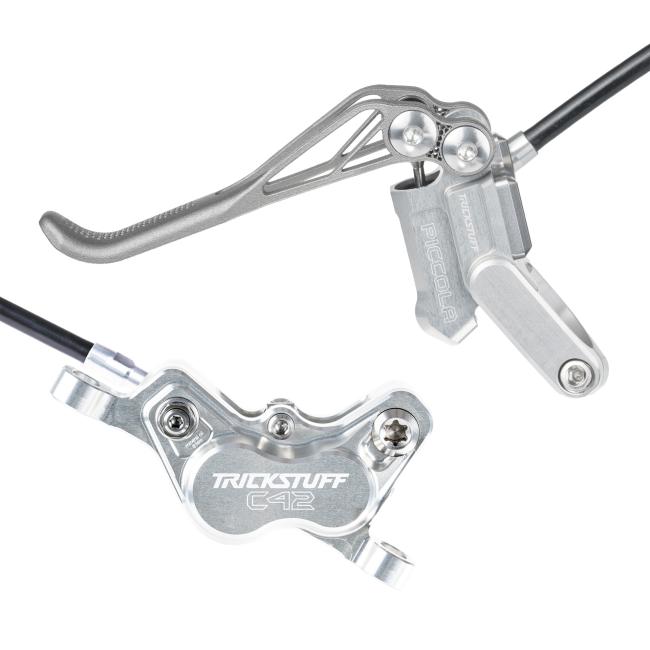

Trail hydraulic disc brakes Trickstuff Piccola HD Titanium Kevlar Black

Piccola HD Titanium is an advanced hydraulic brake designed for riders exploring wild, technical trails far from the beaten path. It combines an ultra-lightweight construction with high braking power, offering excellent control both during demanding climbs and long, unpredictable descents.

Features:

• Piccola + C42 combination – the lightweight Piccola master cylinder works with a powerful four-piston C42 caliper, providing the perfect balance between weight and braking power.
• Titanium levers (3D printed) – ultra-light and durable construction that increases efficiency during climbs.
• Radial master cylinder – improves ergonomics and overall system efficiency.
• High hydraulic ratio – a 9 mm master cylinder piston works with four 14/17 mm caliper pistons, generating strong braking force.
• 4 stainless steel pistons – ensure even operation and a stable braking point.
• Hollow pistons – increased resistance to overheating and improved temperature management.
• Bionol brake fluid – high boiling point and smooth operation even during long descents.
• Thermal stability – no need for cooling breaks during intense riding.
• High control and safety – effective braking in unpredictable terrain.

Piccola HD Titanium with a titanium lever is an ultra-lightweight yet highly effective brake for demanding trail and XC riders. Designed for technical routes beyond the beaten path, it combines precise modulation, high braking power, and low weight, resulting in maximum control and riding comfort.

Features:

• Segment: Trail / XC
• Model: Piccola HD
• Number of pistons: 4
• Piston diameter: 14 / 17 mm
• Master cylinder piston diameter: 9 mm
• Maximum rotor thickness: 2.10 mm
• Pads included: 850 Power+
• Caliper mount system: Post mount (front | rear)
• Fluid type: Bionol organic
• Lever body material: 7075 aluminum
• Lever body color: black
• Brake lever material: titanium (3D printed)
• Brake lever color: natural titanium
• Reservoir cap color: black
• Caliper material: 7075 aluminum
• Caliper color: black
• Piston material: stainless steel
• Hose: Kevlar ø5 mm (black)
• Hose length: 900 mm (front) / 1700 mm (rear)
• Master cylinder connection type: banjo – angled (black)
• ASTM: 4 (up to 120 kg, not recommended for e-bikes)
• Set weight: 442 g
• Weight front | rear: 212 g | 230 g

Color version:

• Lever body: black
• Reservoir cap: black
• Brake lever: natural titanium
• Caliper: black
• Hose: black Kevlar

Heat Resistance – braking performance remains consistent even during long and demanding descents. High operational reliability results from optimizing all system components – calipers, pads, and rotors – for effective heat absorption and dissipation. Additionally, the use of hollow stainless steel pistons supports thermal stability and reduces the risk of overheating.

Modulation – precise control of braking force achieved through the synergy of multiple factors. Ergonomic and adjustable brake levers ensure a perfect fit to the hand, while high-quality brake fluid and very tight manufacturing tolerances guarantee smooth and predictable operation. The quality of pads and rotors, along with advanced design solutions that minimize friction and maximize system efficiency, also play a key role.

Braking Power – braking efficiency depends directly on hydraulic and mechanical ratios. The higher the ratio, the greater the generated braking force. Combined with high overall system stiffness, this translates into maximum performance even in the most demanding conditions.

Defined Pressure Point – a clearly defined, consistent, and firm contact point between pads and rotor enables precise modulation and ensures predictable and reliable performance. High caliper stiffness and the use of high-pressure hoses guarantee immediate response and full control over braking.

• Brake hoses:
  • Kevlar – resistance up to 630 bar
  • Goodridge steel braided – resistance up to 1350 bar
• Caliper stiffness and construction – increased resistance to deformation and energy loss
• Hollow stainless steel pistons – improved temperature management and operational stability
• Bionol brake fluid – low viscosity ensures smooth operation and a high boiling point in the range of 360–420°C

Threaded Fittings – all system components use durable, reusable threaded connections. They eliminate the need for olives and inserts and do not require specialized tools, significantly simplifying installation and servicing.
