Pro Pack Santa Cruz Vala 1 / Bullit 4

Santa Cruz Pro Pack Vala 1 | Bullit 4 is a complete service kit designed for the Santa Cruz Vala 1 C and Santa Cruz Bullit 4 bikes. It includes key suspension and pivot components such as bearings, pivot axles, spacers, dust covers, bolts and Flip Chip components, allowing comprehensive servicing and maintenance of the suspension system in accordance with the manufacturer's specifications.

• Compatible models: Santa Cruz Bullit 4, Santa Cruz Vala 1 C

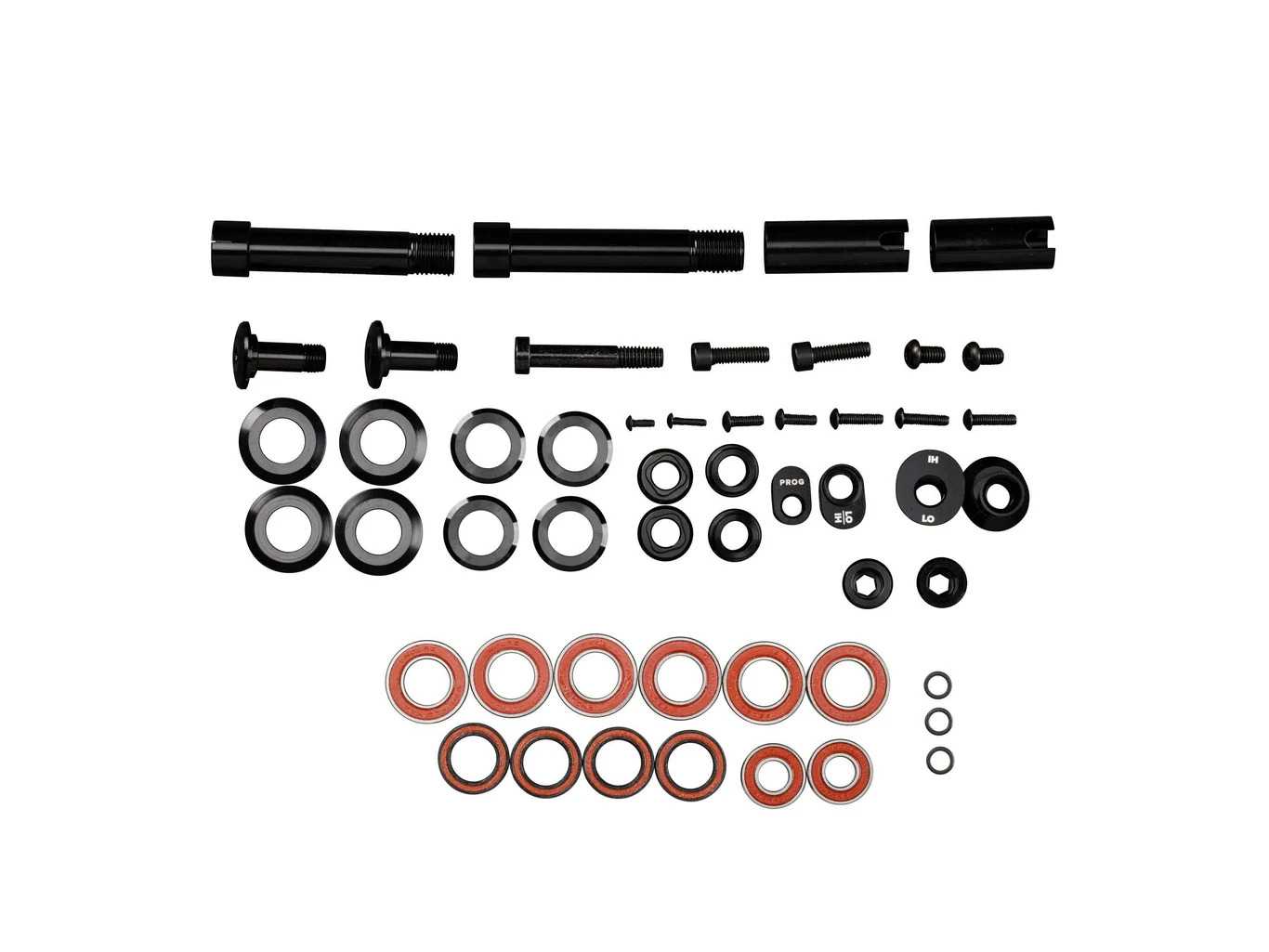

Kit contents

• 08-16292: Pivot Axle Collet M15 x 1.5 x 80.5 - 1 pc.
• 08-22343: Pivot Axle Collet 15 x 1.5 x 90.75 - 1 pc.
• 11-12218: 6902 LLU Max CN bearing - 6 pcs.
• 11-12681: 6900 LLU Max bearing - 2 pcs.
• 11-27485: 6802 LLU Max bearing - 4 pcs.
• 26-11612: aluminium pivot dust cover - 4 pcs.
• 26-11817: M6 washer - 2 pcs.
• 26-15633: black aluminium M6 conical washer - 2 pcs.
• 26-15947: PS bolt M6 x 1.0 x 20 - 2 pcs.
• 26-17013: split spacer 15 x 18 x 40.25 - 1 pc.
• 26-17707: split spacer 15 x 18 x 47.7 - 1 pc.
• 26-20091: M8 x 1.25 x 45 Low Head bolt - 1 pc.
• 26-27479: Flip Chip M8 x 7 Thread - 1 pc.
• 26-27480: Flip Chip M8 x 7 Thru - 1 pc.
• 26-27481: Trunnion bolt M10 x 10 - 2 pcs.
• 26-27482: Flip Chip M10 x 2.6 SSE - 2 pcs.
• 26-27483: washer 15 x 23 x 2.5 - 2 pcs.
• 26-27484: M10 x 20 SSE bolt - 2 pcs.
• 26-27486: aluminium M10 x 6 CS nut - 2 pcs.
• 26-27487: aluminium M10 x 26 bolt - 2 pcs.
• 26-27488: 6802 dust cover - 4 pcs.
• 26-27489: 6802 CS flanged reducer - 2 pcs.
• 26-15533: aluminium washer 10 x 19 x 3 mm - 2 pcs.
