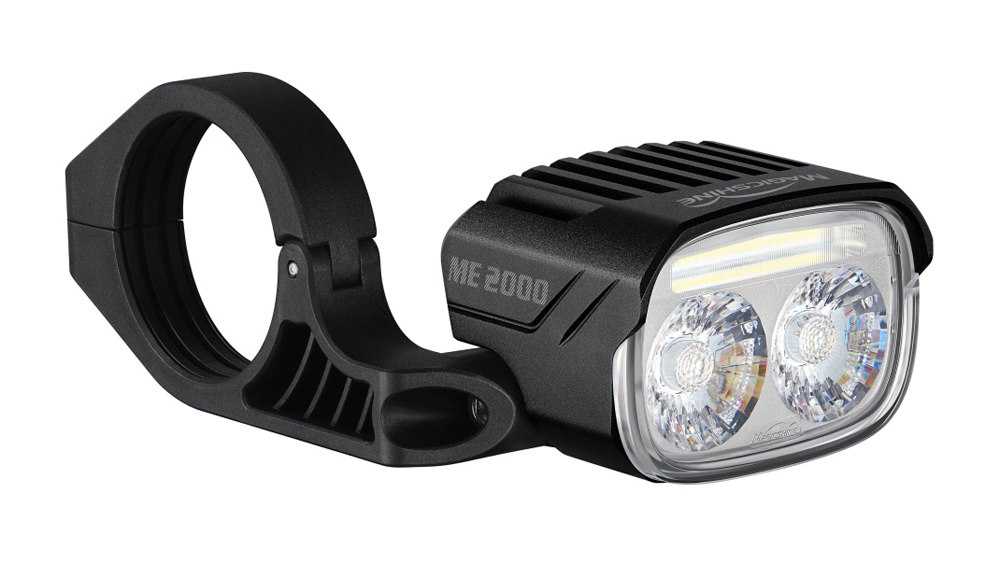

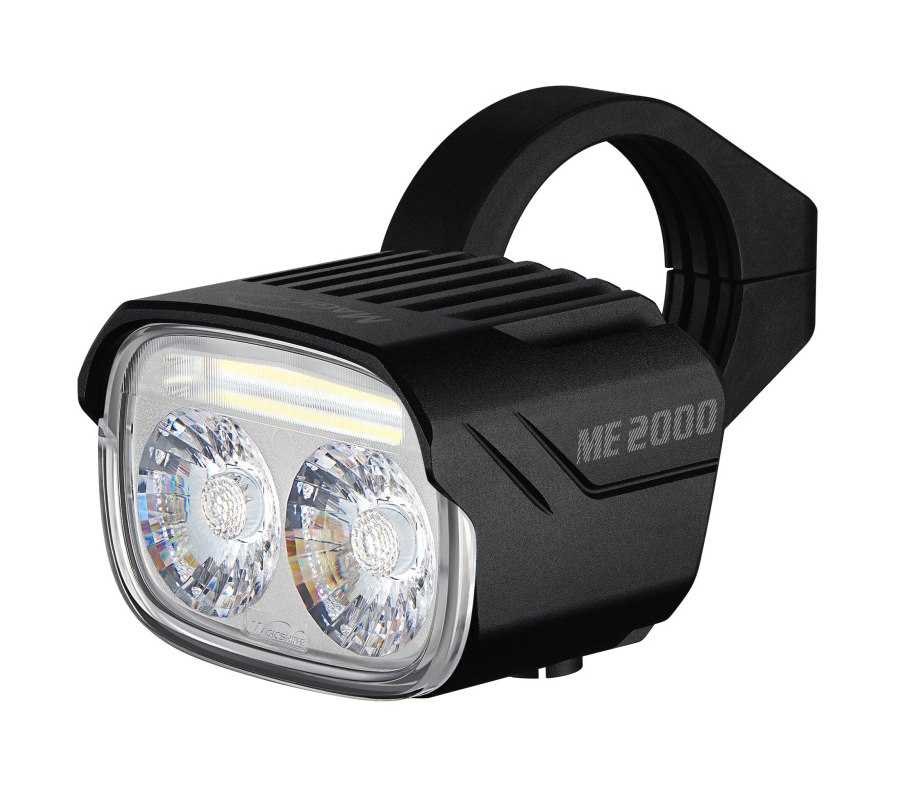

Magicshine ME 2000 V2.0 E-Bike Front Light, 2000 Lumens

Magicshine ME 2000 V2.0 is a front light designed for electric bicycles and developed for demanding MTB routes, trail riding, road cycling, and everyday commuting. Two powerful Luminus SST-40 LEDs provide a light output of up to 2000 lumens and a beam distance of up to 220 m. The wide beam improves visibility of the roadside and obstacles, while the daytime running light and side visibility increase safety in urban traffic.

The light automatically adapts to the system voltage within the 6-60 V range and detects the available output power of the e-bike system. This allows it to select the maximum brightness level without overloading the electrical system. The detachable power cable makes it easier to route the wiring inside the frame and can be replaced separately from the light.

Features

• Wide light beam: improves visibility of the roadside, obstacles, and terrain ahead of the bicycle
• Voltage range: automatic adaptation to 6-60 V systems
• Power matching: the light detects the output power of the e-bike system and selects the maximum available brightness
• Daytime running light: 30-lumen DRL mode
• Side visibility: increases the cyclist's visibility at intersections and in urban traffic

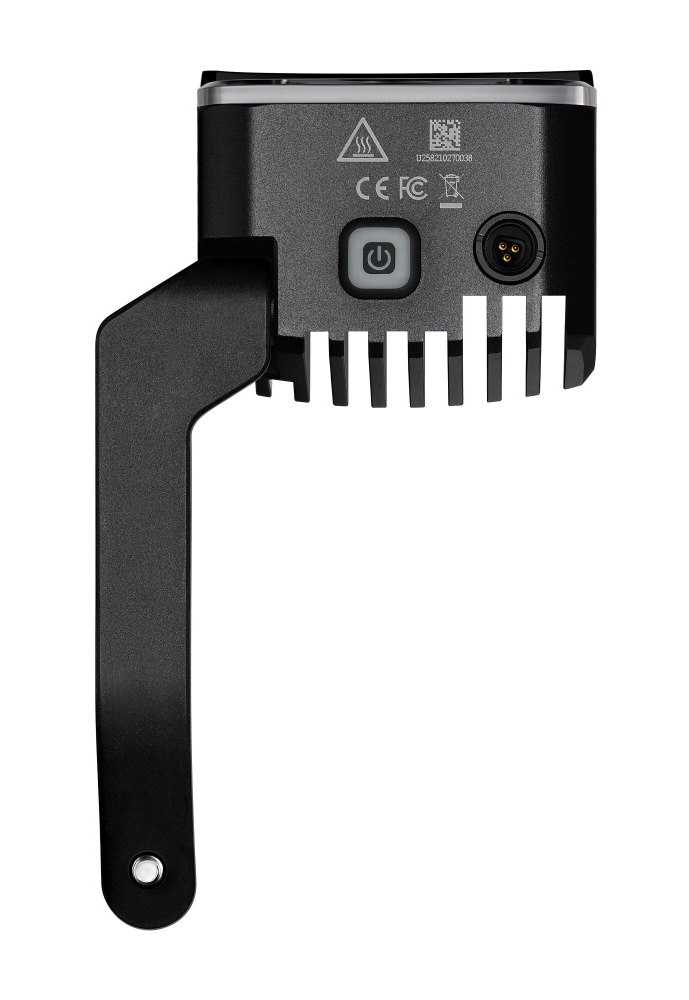

• Detachable cable: slim 3.5 mm 3-pin D-type connector makes it easier to route the cable through the frame
• Replaceable cable: the cable can be replaced separately in case of damage
• Memory function: remembers the last used operating mode
• Power matching function: allows the light's operation to be adjusted during initial installation

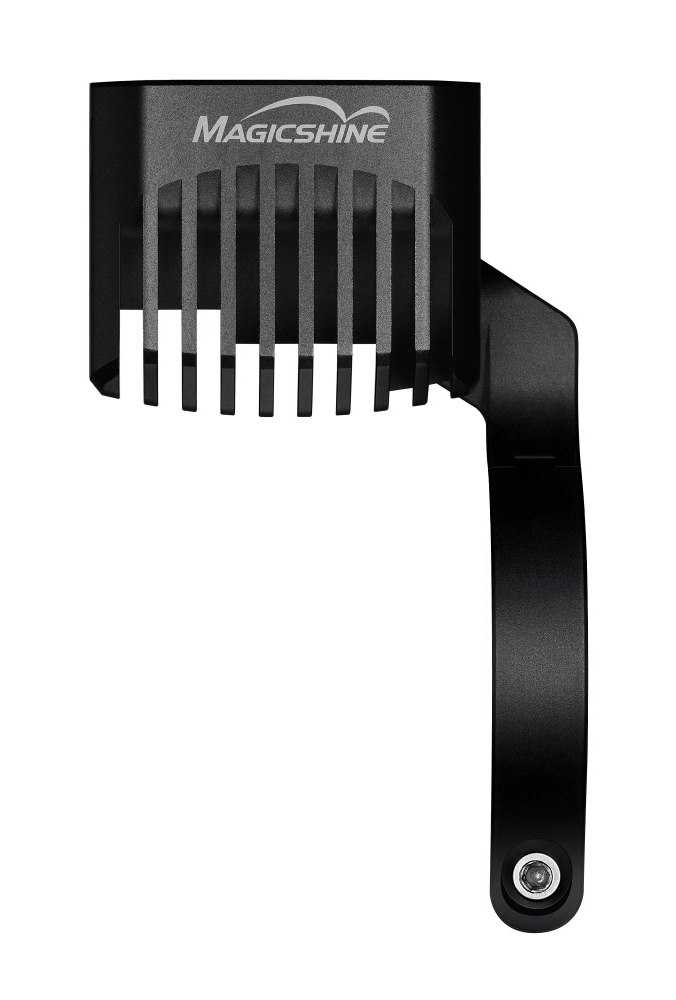

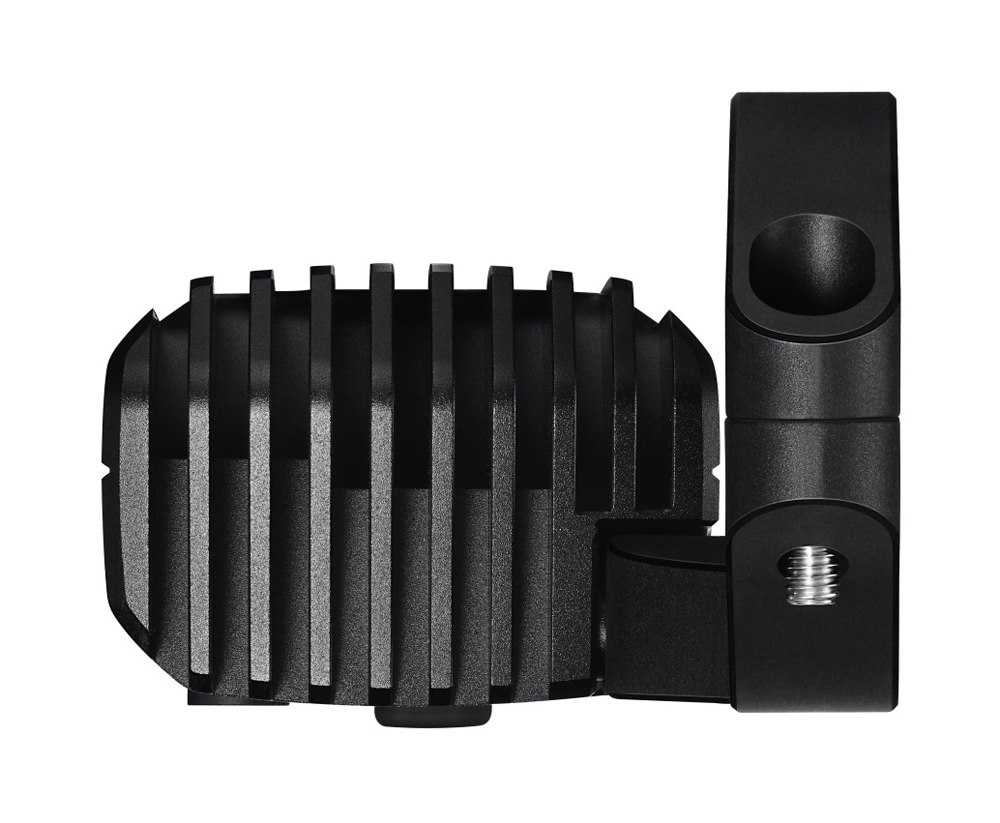

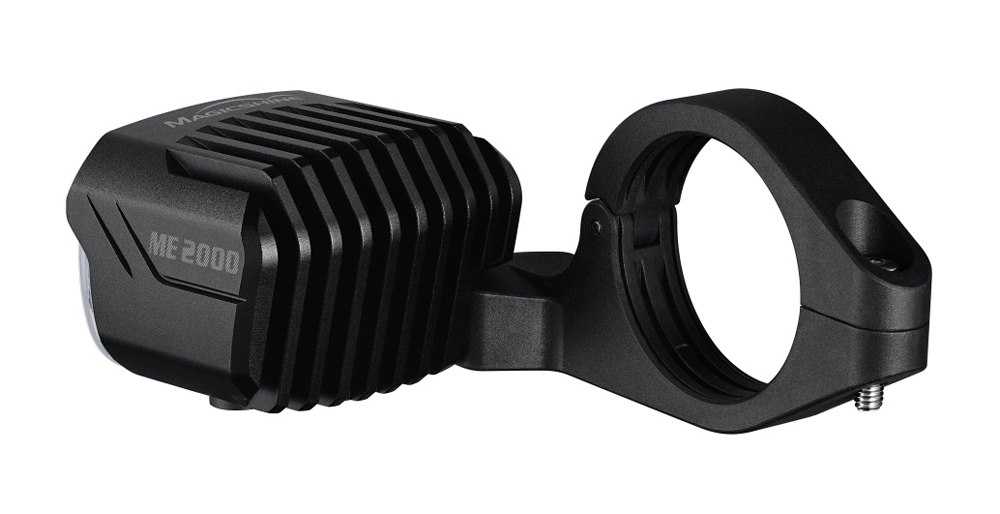

• Cooling: large heat sinks support effective heat dissipation
• Water resistance: IPX6 standard
• Construction: one-piece housing resistant to shocks and intensive off-road riding

Technical specifications

• Maximum light output: 2000 lm

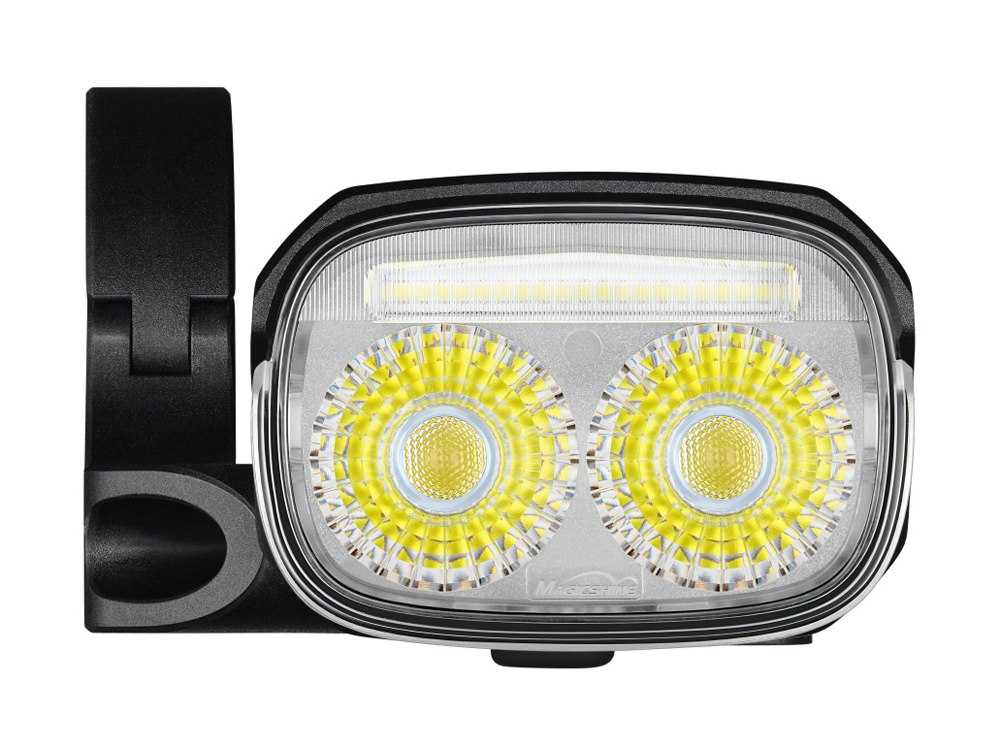

• LEDs: 2 Luminus SST-40 LEDs
• Power supply: electric bicycle system
• Voltage range: 6-60 V
• Maximum beam distance: 220 m
• Angle adjustment: 45° upward and 90° downward
• Water resistance: IPX6
• Dimensions: 60 x 110 x 45 mm
• Weight: 118.5 g

Light modes and beam distance

• Low mode: beam distance up to 120 m
• Medium mode: beam distance up to 160 m
• High mode: beam distance up to 220 m
• DRL mode: 30-lumen daytime running light

Material

• Housing: aerospace-grade aluminium

Package contents

• Light: Magicshine ME 2000 V2.0

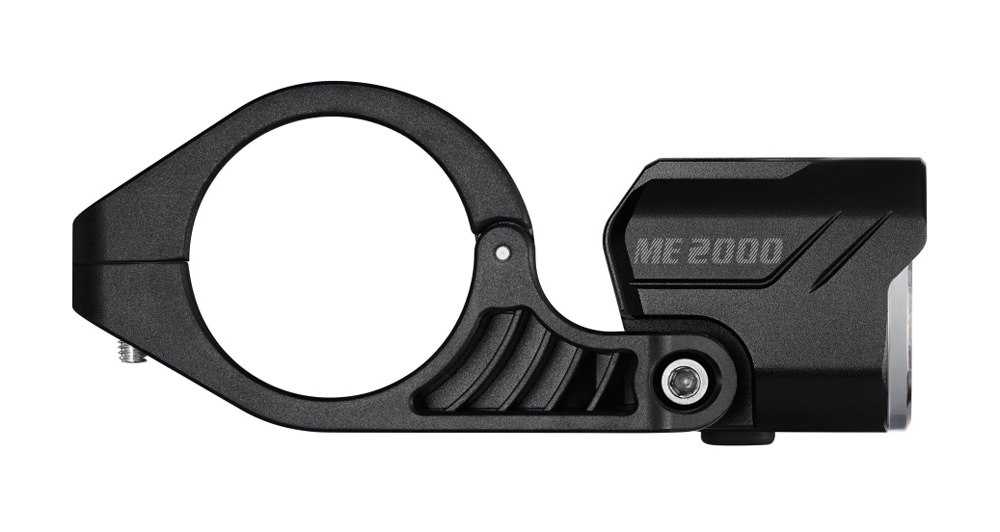

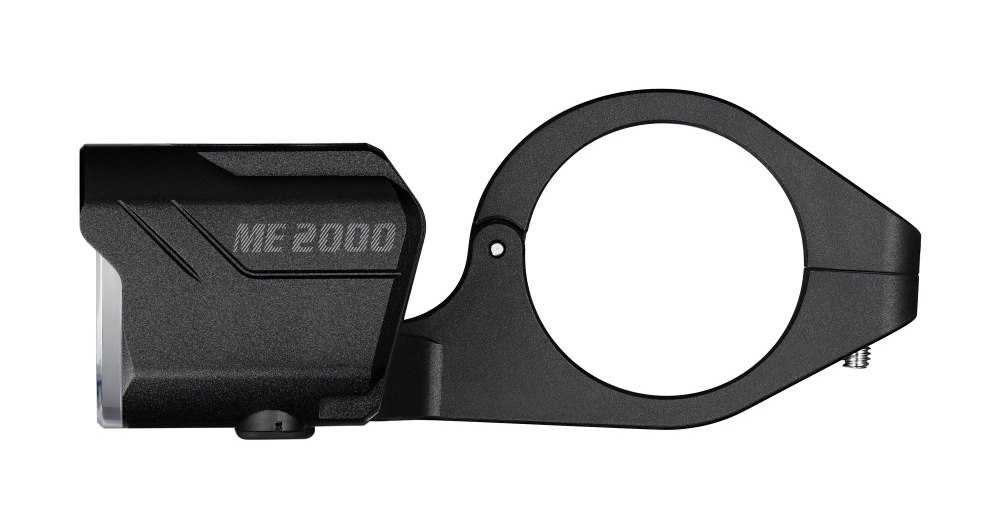

• Handlebar mount: single-sided

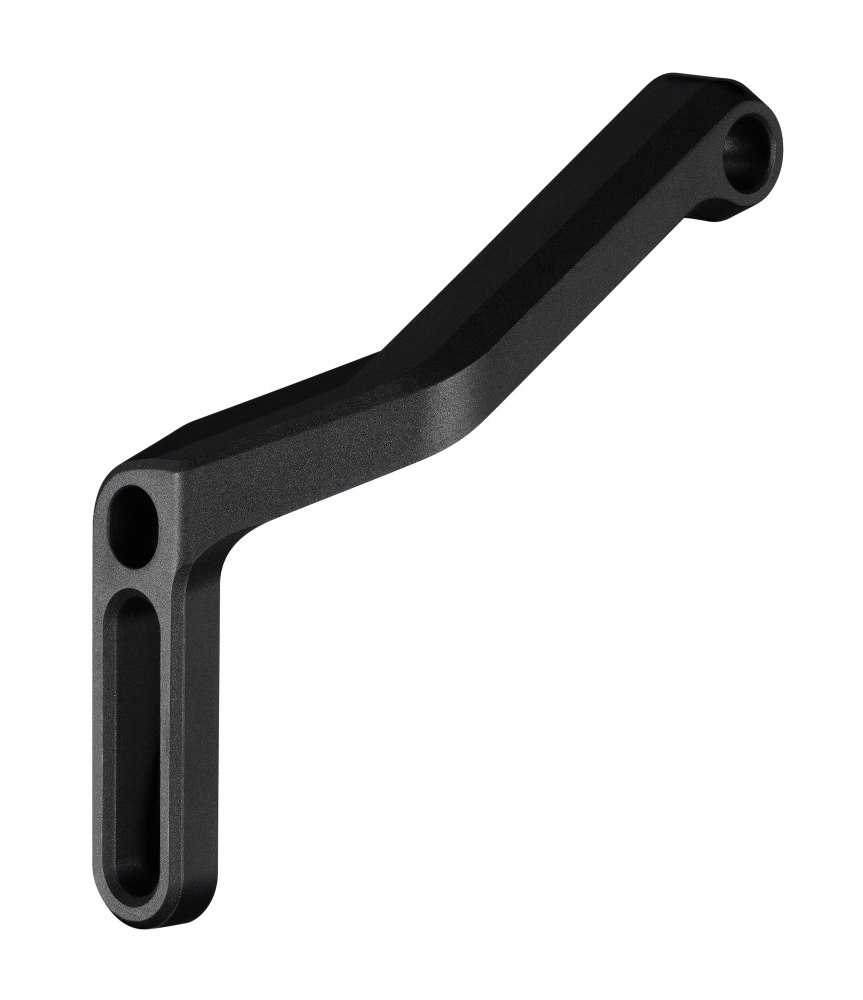

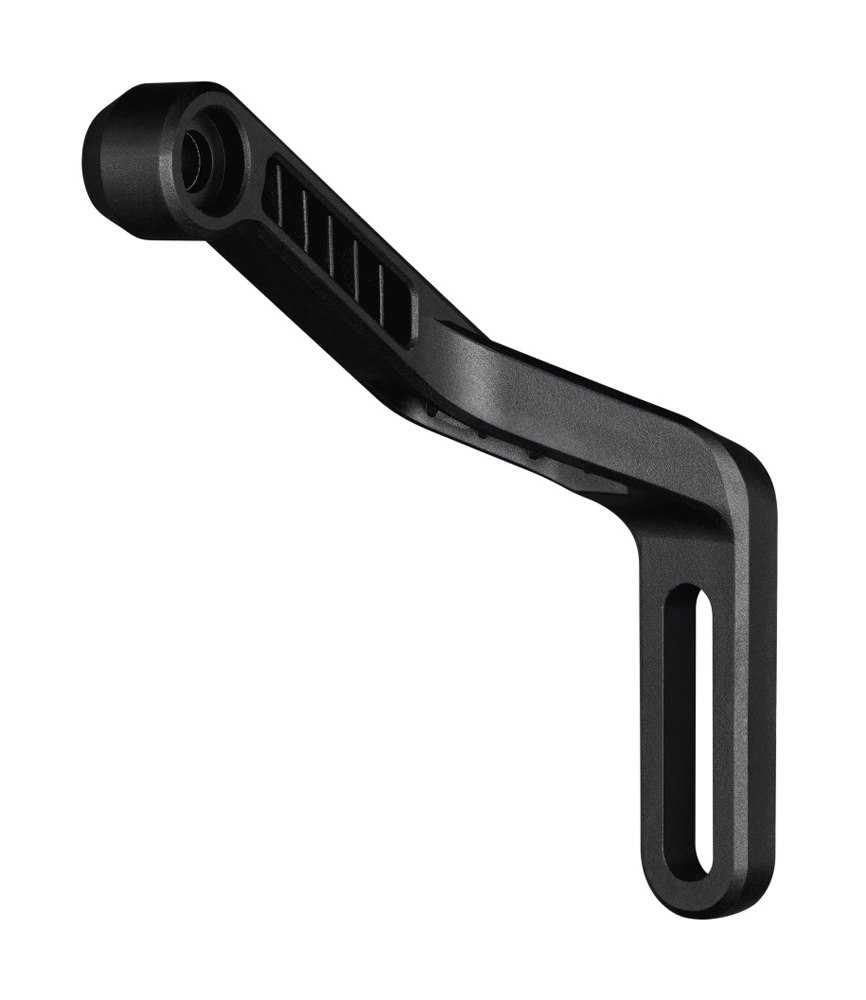

• Fork mount: universal
• Spacers: 28 mm, 32 mm and 35 mm

Important

The power cable suitable for the specific motor system is sold separately and must be selected according to the brand and type of the bicycle drive system.

Compatible cables

• MGS-MJ-6290V20-Bosch: cable for Bosch systems
• MGS-MJ-6290V20-BoschBES3: cable for Bosch BES3 / Bosch 2022 systems
• MGS-MJ-6290V20-Brose: cable for Brose systems
• MGS-MJ-6290V20-Giant: cable for Giant systems
• MGS-MJ-6290V20-Shimano: cable for Shimano / Bafang systems
• MGS-MJ-6290V20-Yamaha: cable for Yamaha systems

Operation

• Switching on and off: press and hold the button for 1 second
• Changing modes: double-click to switch between the daytime running light and the main light
• Changing brightness: single-click to cycle through Low, Medium and High levels
