E-Bike Radon Render 10.0 800 Swamp

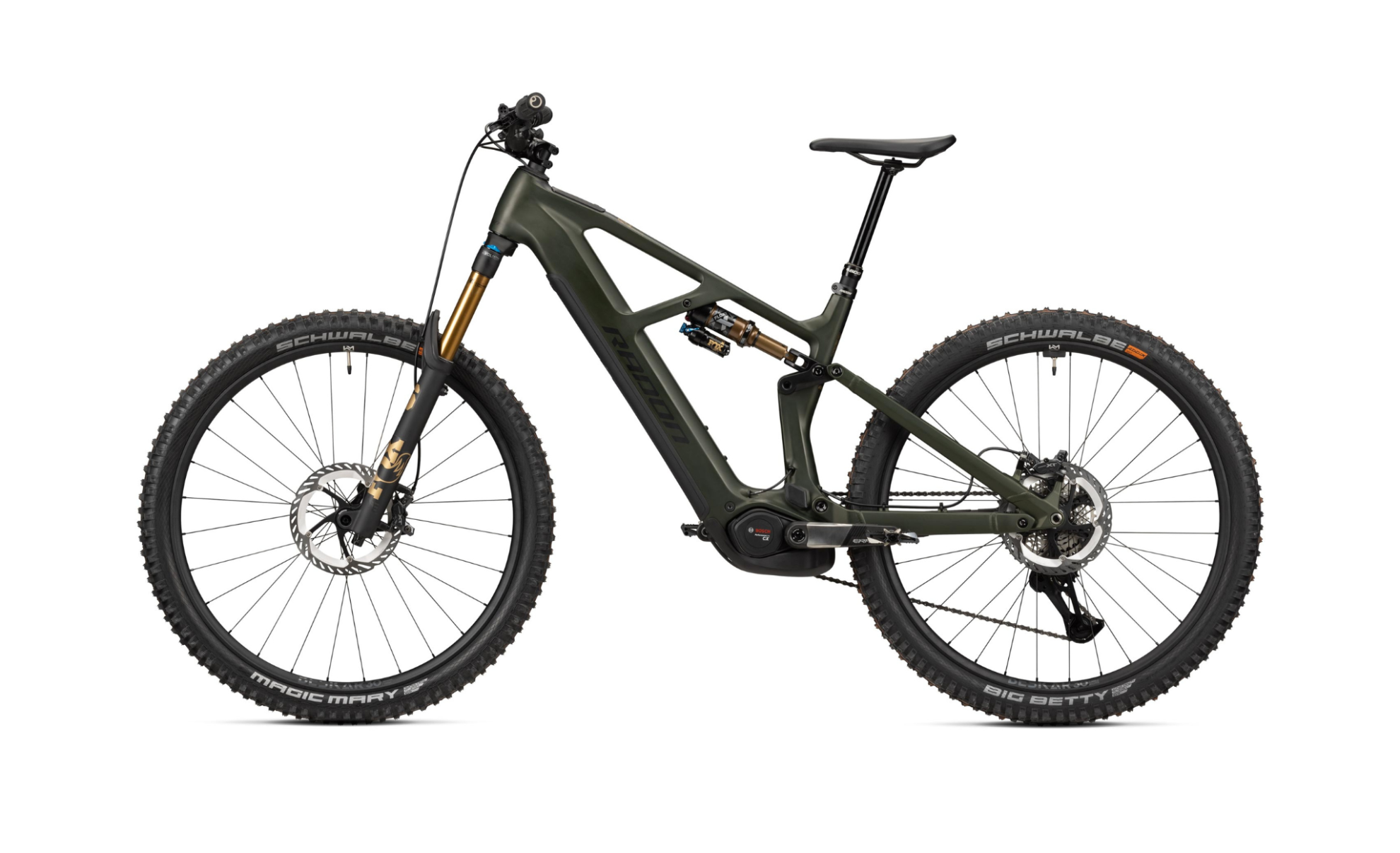

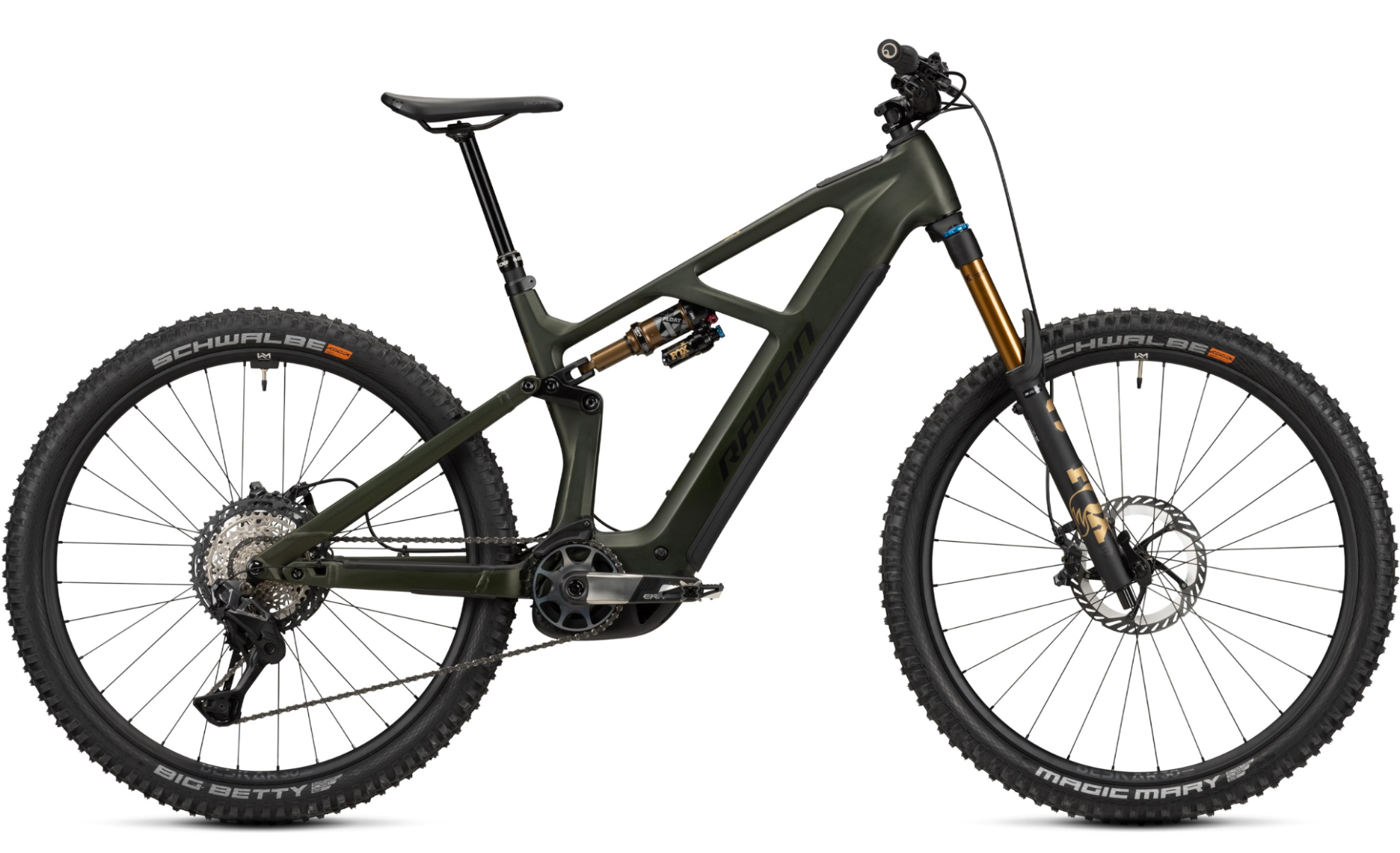

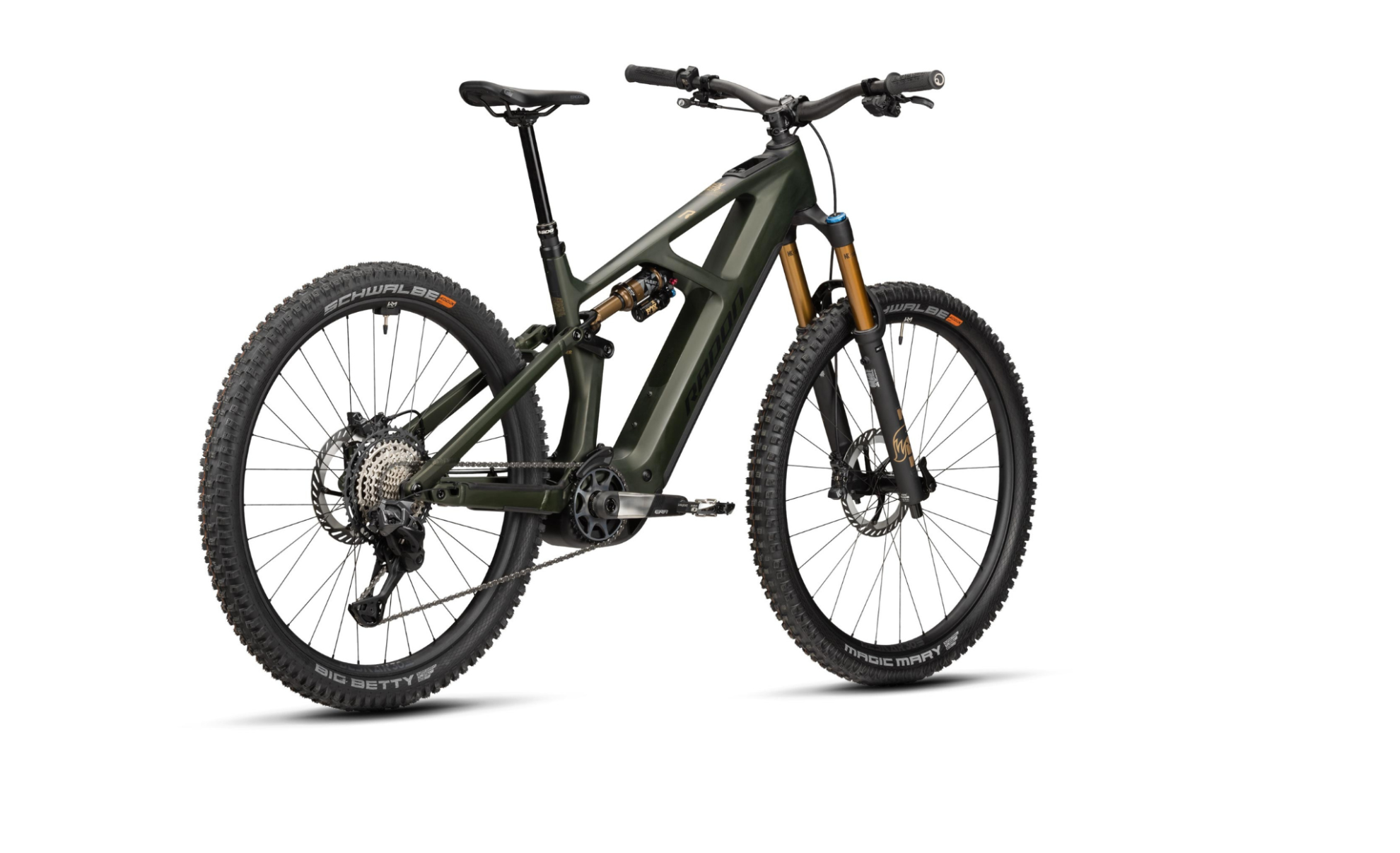

Radon Render 10.0 800 is an electric e-Mtb for riders looking for a powerful, modern bike for trail riding, enduro and demanding mountain routes. The construction combines a stiff carbon front triangle with an aluminium rear triangle, providing a good balance of precise handling, durability and comfort on rough terrain. The bike has been designed for control on descents, efficient climbing and confident performance during long rides.

Features

• Intended use: e-Mtb riding, trail, enduro and demanding off-road routes
• Frame construction: carbon front triangle and aluminium rear triangle
• Suspension: 160 mm travel at the front and 140 mm at the rear, adapted to technical off-road riding
• Wheels: 29" size, supporting stability and smooth obstacle clearance
• Tyres: Schwalbe Magic Mary at the front and Schwalbe Big Betty at the rear for grip and control
• Brakes: powerful Shimano Xt system with 203/203 mm discs for effective braking
• Drivetrain: Shimano Xt Di2 electronic rear derailleur powered by the bike system
• Compatibility: option to use the Bosch Power More 250 range extender
• Maximum permitted total weight: 150 kg, including a maximum rider weight of 110 kg together with the bike and equipment
• Colour: swamp / deepblack

Technical specification

• Frame model: Render 800
• Maximum tyre width: 2.6"
• Derailleur hanger: Udh
• Number of gears: 1 x 12
• Fork: Fox 36 Factory, Fit Grip X, E-Tuned, Boost, 44 mm offset

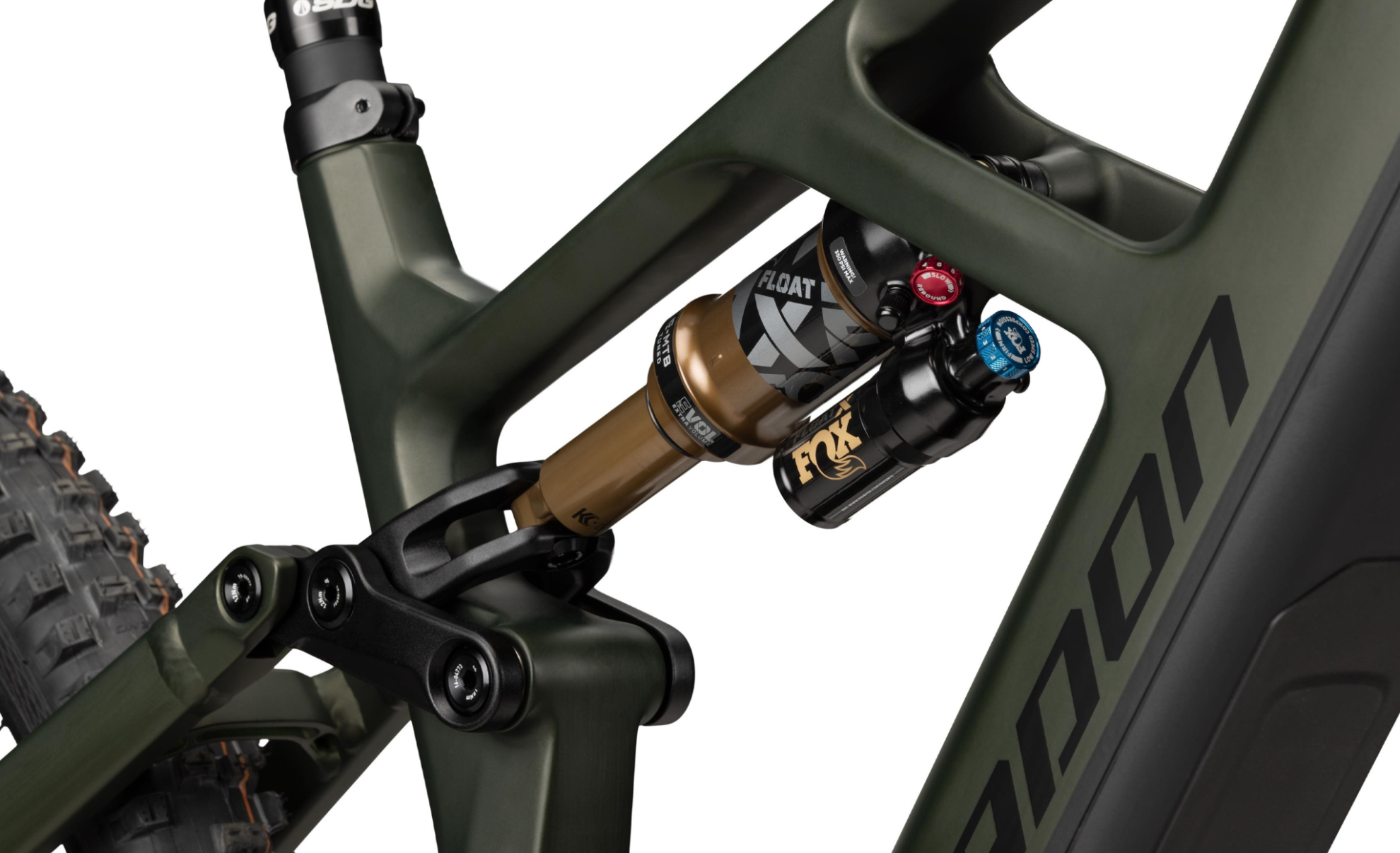

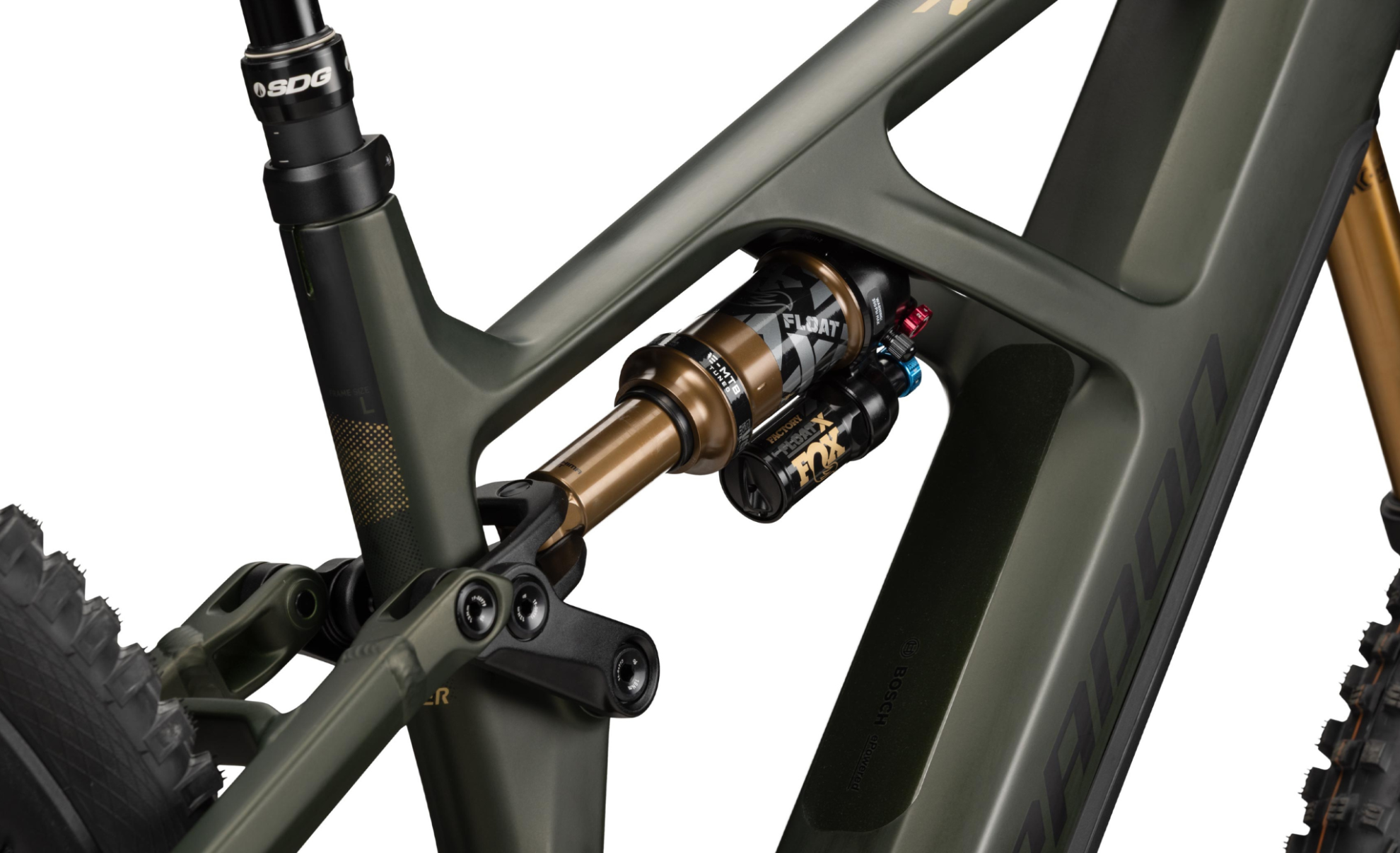

• Shock: Fox Float X Factory, 2-Pos., Evol Lv, Kashima
• Shock installation dimension: 210 x 55 mm
• Shock bushings: body 8 x 30 mm, shaft Du-Bushing 12.7 mm

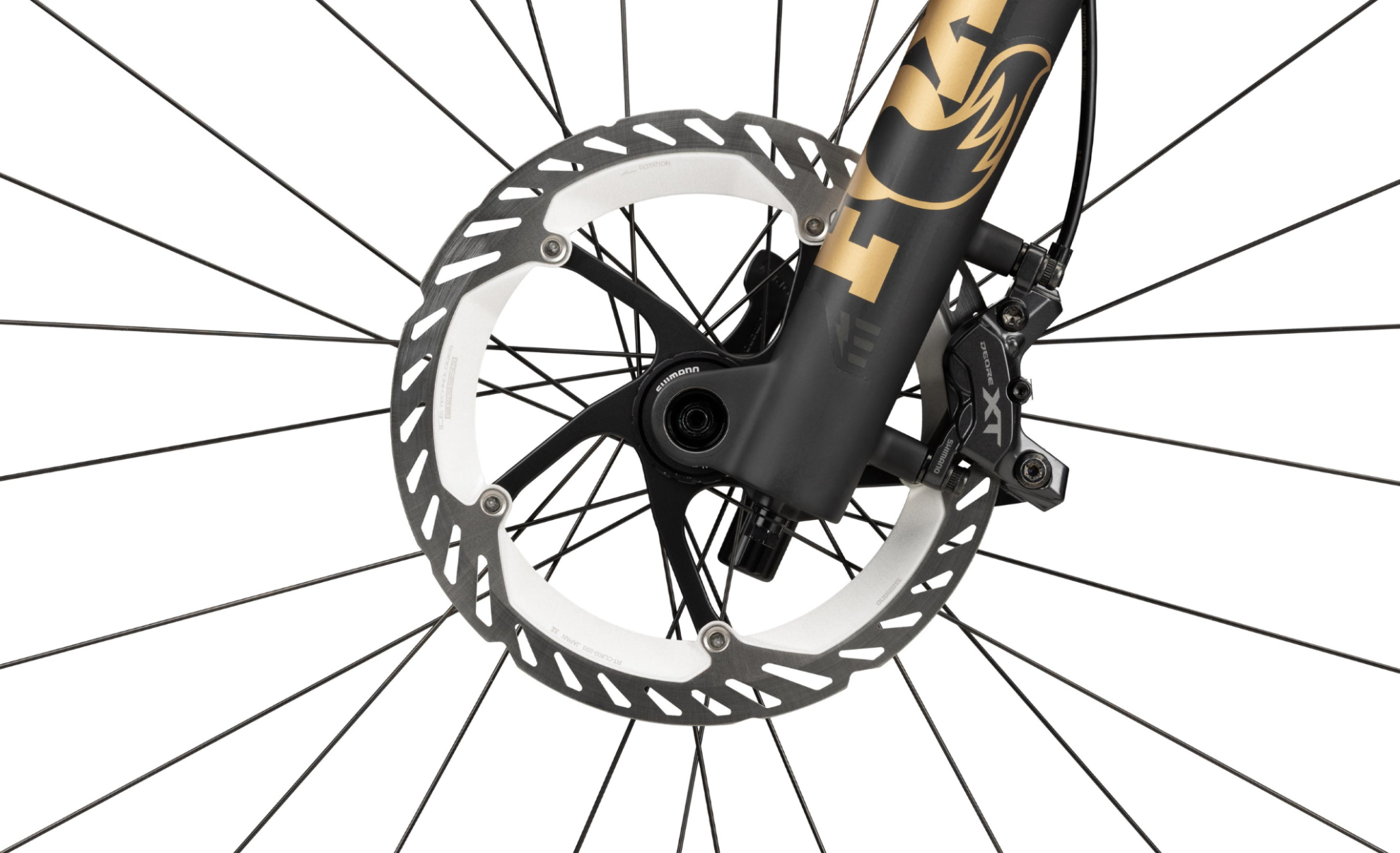

• Brakes: Shimano Xt Br-M8220
• Brake discs: Shimano Rt-Cl800, 203/203 mm, center-lock
• Headset: Acros Block-Lock with Icr, ZS56/ZS56
• Stem: Race Face Turbine R, Ø35 mm
• Stem length: M - 40 mm, L - 50 mm, XL - 60 mm

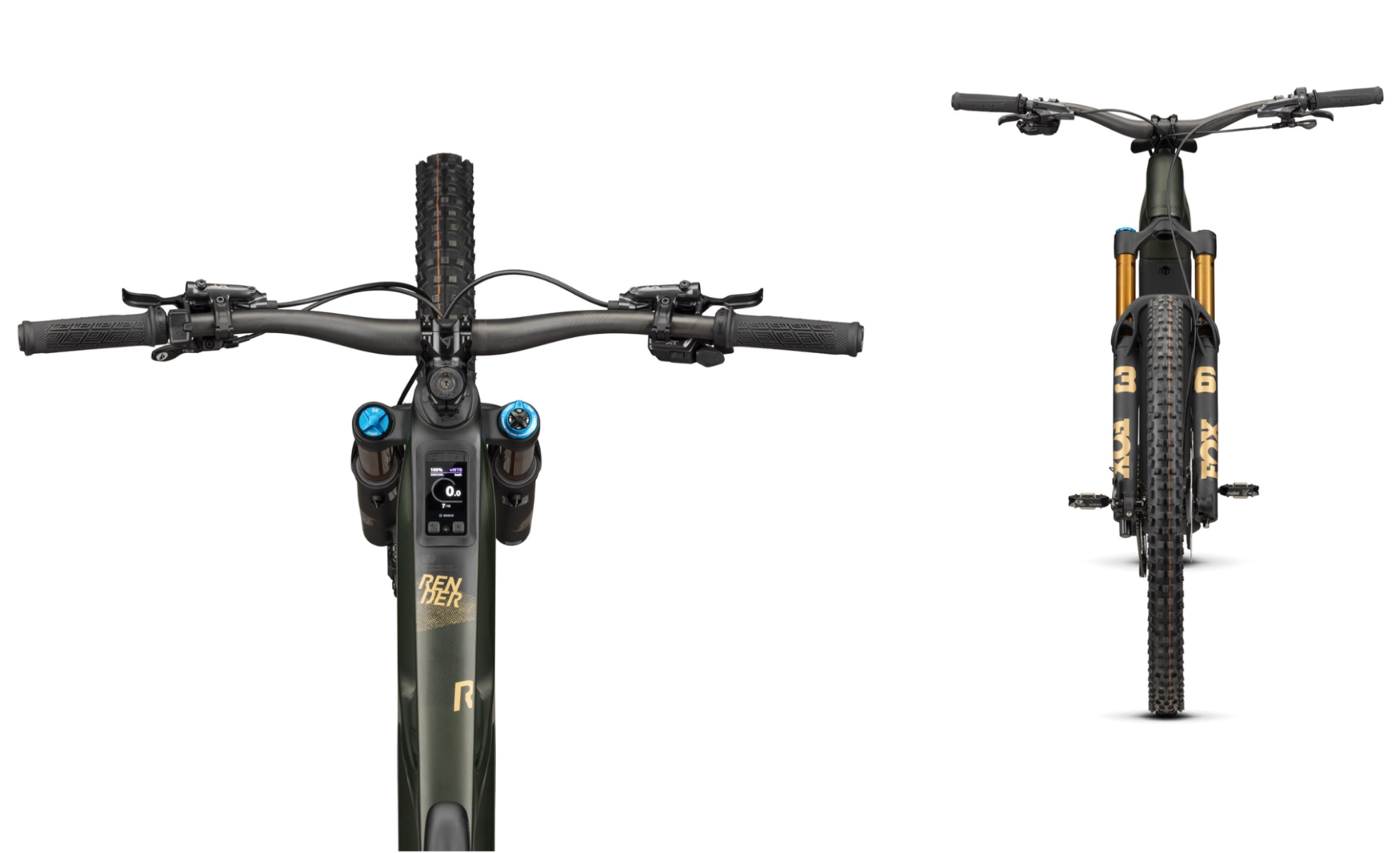

• Handlebar: Race Face Turbine, 35 x 780 mm, 40 mm rise
• Grips: Ergon Gdh
• Saddle: Ergon SM10 Enduro
• Seatpost: Sdg Tellis V2, Ø31.6 mm
• Seatpost travel: M - 130-150 mm, L - 150-170 mm, XL - 150-170 mm

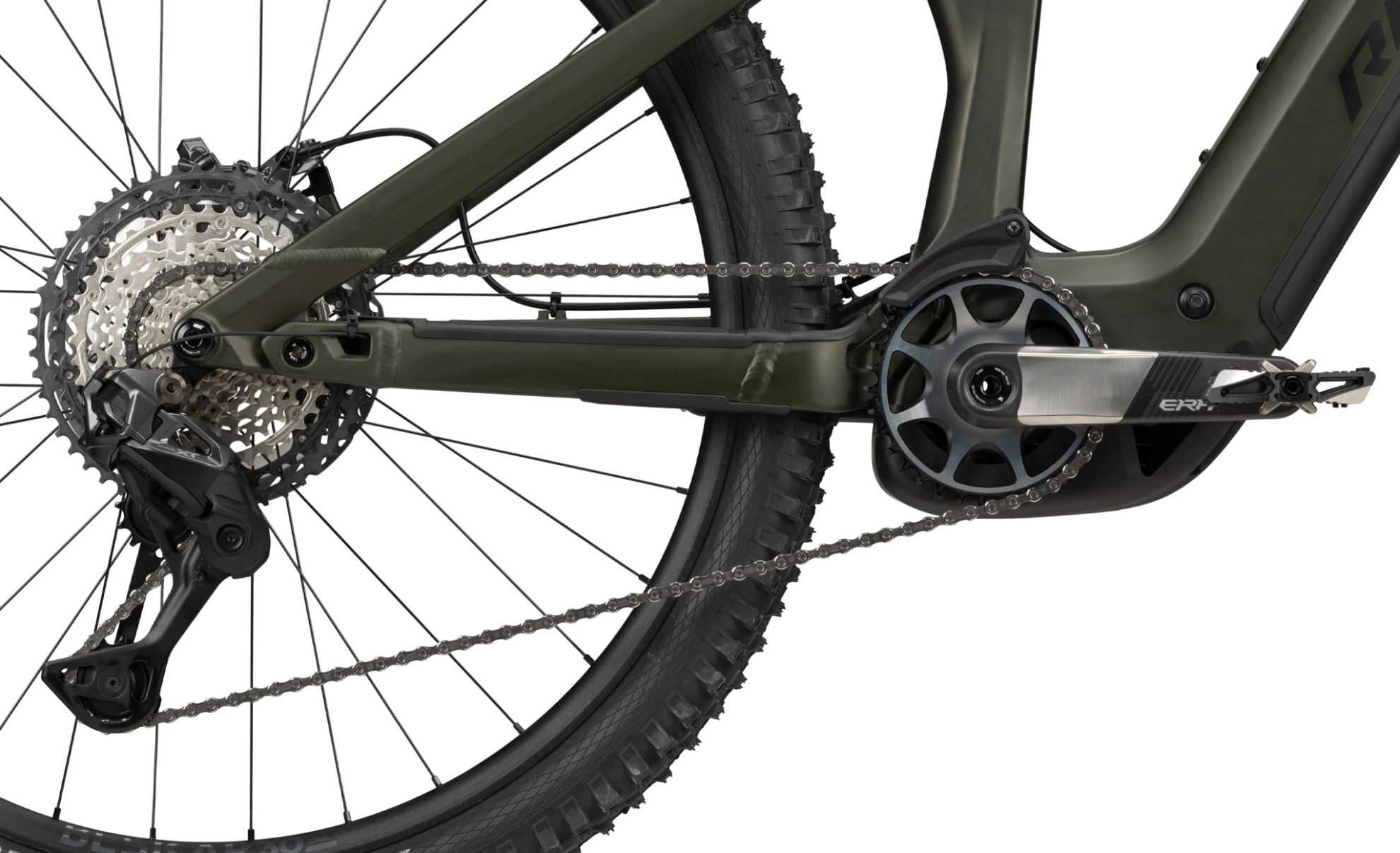

• Crankset: Race Face Era 165 mm, 34T, 55 mm chainline
• Rear derailleur: Shimano Xt Di2 Rd-M8260-Sgs, 12-speed
• Shifter: Shimano Xt Di2 Sw-M8250-Ir
• Chain guide: Reverse Components Flip-Guide, direct mount
• Cassette: Shimano Xt Cs-M8200, 10-51
• Chain: Shimano Xt Cn-M8100
• Front tyre: Schwalbe Magic Mary, Addix-Soft, Super Trail, Tle, 29" x 2.4"
• Rear tyre: Schwalbe Big Betty, Addix-Soft, Super Gravity, Tle, 29" x 2.4"
• Wheels: Newmen Beskar 30 base/strong, 110/148 mm
• Rim width: 30 mm
• Tubeless ready system: yes
• Tubeless tape: 33 mm, included
• Tubeless valves: not included
• Tubeless sealant: not included
• Pedals: Acid Flat C3-Zp
• Weight: from 23.40 kg

Drive and motor description

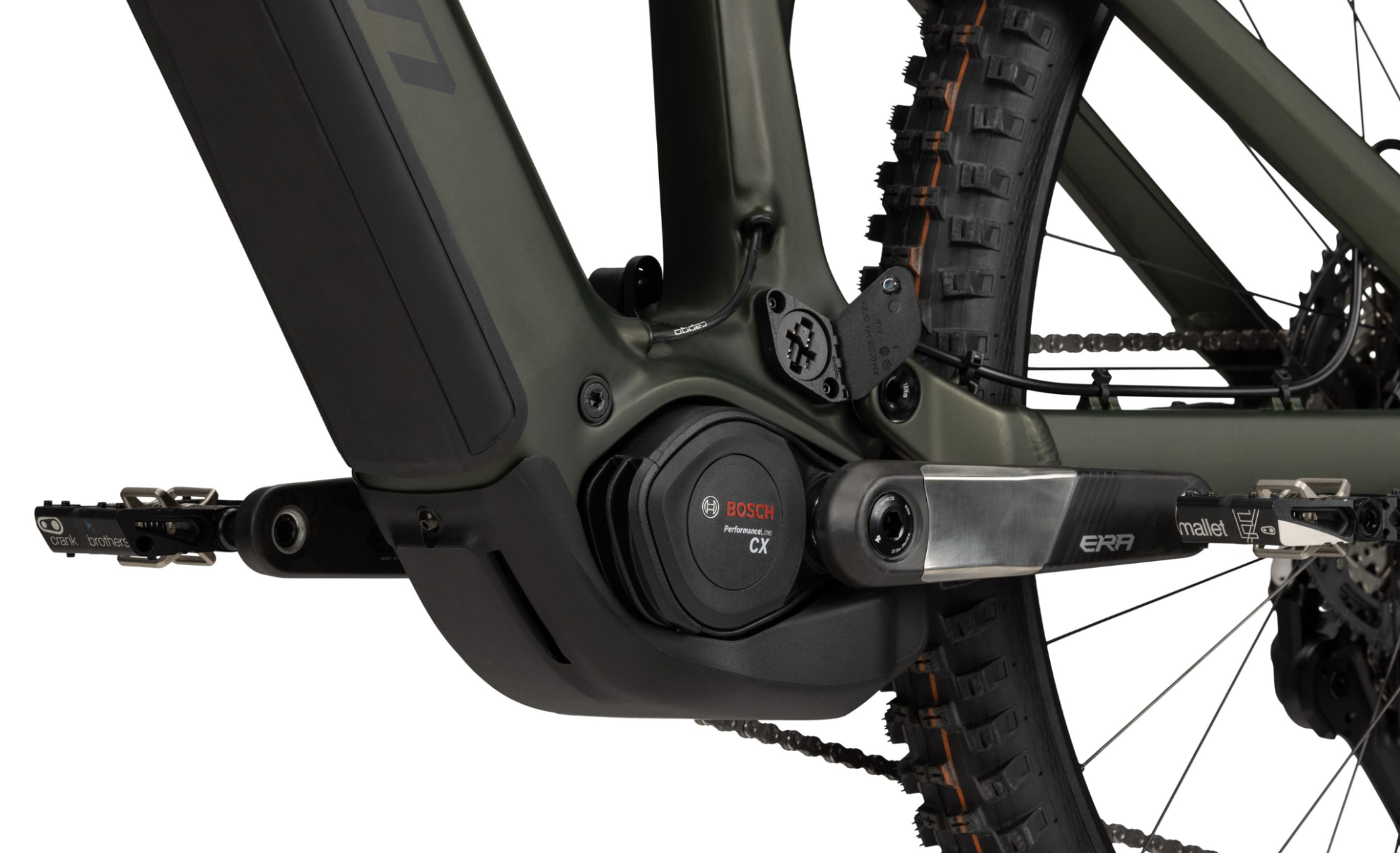

The heart of the bike is the Bosch Performance Line Cx Gen5 Smart System, designed for dynamic e-Mtb riding. The drive unit provides powerful, smooth and direct assistance on climbs, technical sections and steep parts of the route. The system analyses pedal pressure, cadence and bike movement, so the assistance is adapted to the terrain and riding style.

• Motor: Bosch Performance Line Cx Gen5 Smart System
• Maximum torque: 100 Nm
• Maximum motor power: 750 W
• Maximum assistance level: 400%
• Motor weight: approx. 2.8 kg
• Nominal power: 250 W
• Assistance: up to 25 km/h
• System type: Bosch Smart System
• Drive type: chain drive
• Cadence sensor: measures how fast the cranks rotate
• Torque sensor: measures the force applied to the pedals
• Motion sensors: detect how the bike is moving
• Operating character: direct, sensitive and controlled

Riding modes and functions

• eMtb+ mode: supports riding in steep, rough terrain and helps maintain traction on loose or wet surfaces
• eMtb mode: progressively adjusts the assistance level to pedal pressure
• Extended Boost: helps overcome steps, rocks and technical obstacles after a short, stronger push on the pedal
• Walk assistance: function supporting the rider when pushing the bike
• Hill Hold: helps prevent the bike from rolling backwards uncontrollably on steep sections
• Hill start assist: supports controlled starts uphill
• Ride mode personalisation: option to adjust riding parameters in the Bosch eBike Flow app

Battery, display and system operation

• Battery: Bosch Powertube 800 Wh
• Battery mounting: integrated into the frame
• Battery capacity: 22.2 Ah
• Voltage: 36 V
• Energy: approx. 800 Wh
• Battery weight: approx. 3.9 kg
• Charger: Bosch Charger 4A
• Charging time to 50%: approx. 2.6 hours
• Charging time to 100%: approx. 6.9 hours
• Range extender: compatible with Bosch Power More 250

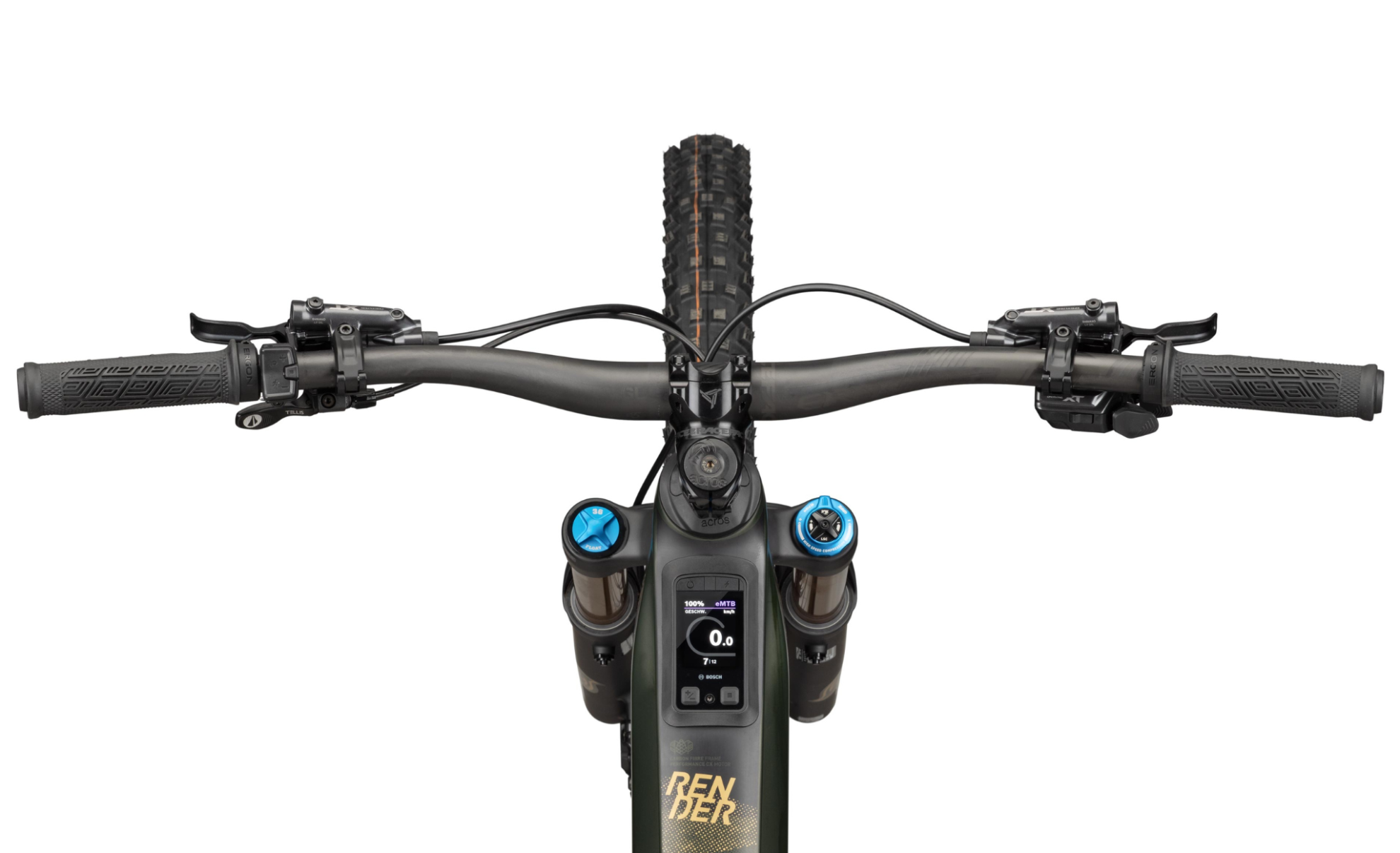

• Display: Bosch Kiox 400C
• Screen diagonal: approx. 2.0" / 5.1 cm
• Display brightness: up to 1000 cd/m² with brightness adjustment
• Display power supply: e-bike battery / internal battery
• Charging external devices: via USB-C
• Display configuration: over 30 settings via the eBike Flow app
• Control: Bosch Mini Remote
• Remote connection: Bluetooth

Bosch eBike Flow app

• System updates: option to download new functions and component updates
• Activity recording: ride and training data recording
• Ride mode personalisation: adjustment of support level, dynamics, maximum torque and maximum speed
• Data overview: information on battery level, range, distance covered and service date
• Navigation: option to use navigation prompts via the Kiox 400C display
